€99.00

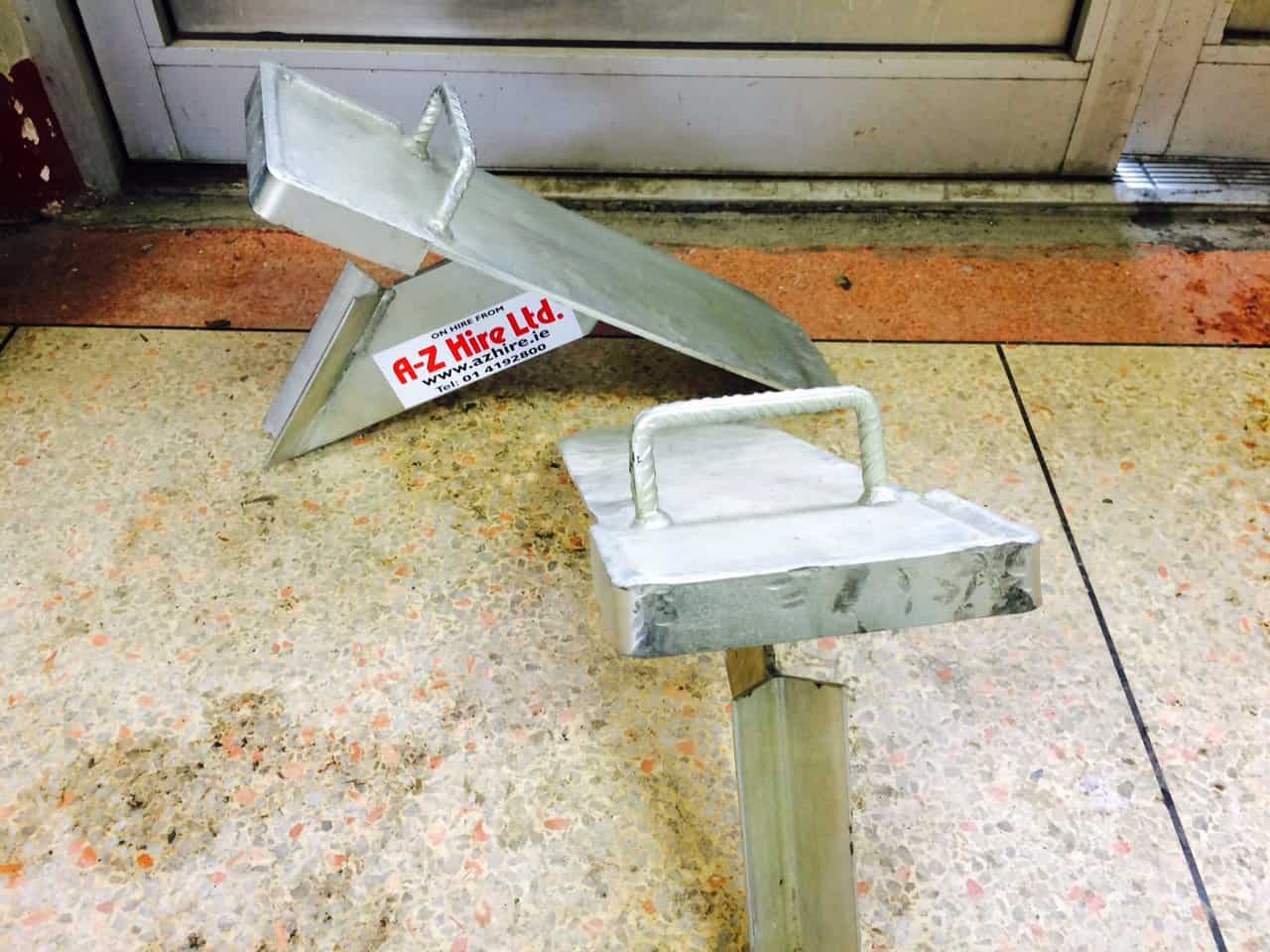

Strongboy Wall Support – Available to Hire in Dublin from A-Z Hire
If you’re planning structural alterations to masonry or brickwork, the Strongboy Wall Support is a must-have tool for safe and effective temporary support. Available to hire in Dublin from A-Z Hire, the Strongboy is ideal for both domestic renovations and professional construction projects.
What is a Strongboy Wall Support?
A Strongboy Wall Support is a specialist piece of construction equipment designed to provide temporary lateral support to walls, ceilings, and other load-bearing structures during structural alterations. Most commonly used when creating openings for doors or windows, the Strongboy slots into brickwork and works in conjunction with adjustable steel props (Acrow props) to hold the masonry safely in place.
Made from high-quality steel and zinc-plated for durability, Strongboys are suitable for supporting single or double skin walls up to 225 mm thick. They are essential for ensuring safety when removing lintels, bricks, or load-bearing components.
Key Features:
-
Maximum Load Capacity: 340 kg (750 lbs) per unit
-
Maximum Safe Working Height: 3 metres from a firm, level base
-
Prop Spacing on Sound Brickwork: Up to 900 mm (3 ft)
-
Wall Compatibility: Supports single and double skin masonry walls
-
Build Quality: Robust steel construction with zinc-plated finish
-
Unit Weight: Approx. 5.8 kg
How do I use a Strongboy Wall Support?
Using a Strongboy correctly is vital for safety. Here’s a step-by-step guide:
-
Preparation: Remove a brick or scrape mortar from the joint above the intended work area.
-
Insert Strongboy: Slide the blade of the Strongboy into the mortar joint or gap created.
-
Install Prop: Fit the Strongboy onto the top of an Acrow prop and adjust the height until secure.
-
Positioning: Ensure the horizontal plate rests against the wall face and the load is evenly distributed.
-
Spacing: On solid masonry, Strongboys can be placed up to 900 mm apart. Reduce spacing for older or weaker walls.
-
Stability: For heights above 3 metres, tie the props together using scaffold tubes for added support.
Important: Always ensure the base is firm and level, and consult a qualified structural engineer if you’re unsure about safe usage.
Hire Strongboy Wall Supports in Dublin
At A-Z Hire in Dublin, we provide Strongboy Wall Supports for daily, weekly, or long-term hire. Our expert team can assist you in choosing the right quantity and setup for your specific project.
Whether you’re working on a home renovation, extension, or commercial construction site, A-Z Hire has the right equipment to keep your project safe and compliant.
This information is a guide — please consult a structural engineer or competent professional before using these products.
Hire from: €5 (incl. VAT)
Description
A Strongboy is a specialised piece of equipment used in construction and renovation projects, particularly in the context of masonry or brickwork.
Its primary purpose is to provide temporary support to structures, such as walls or ceilings, when a structural element needs to be removed or altered.
It is typically used for the temporary support of walls
