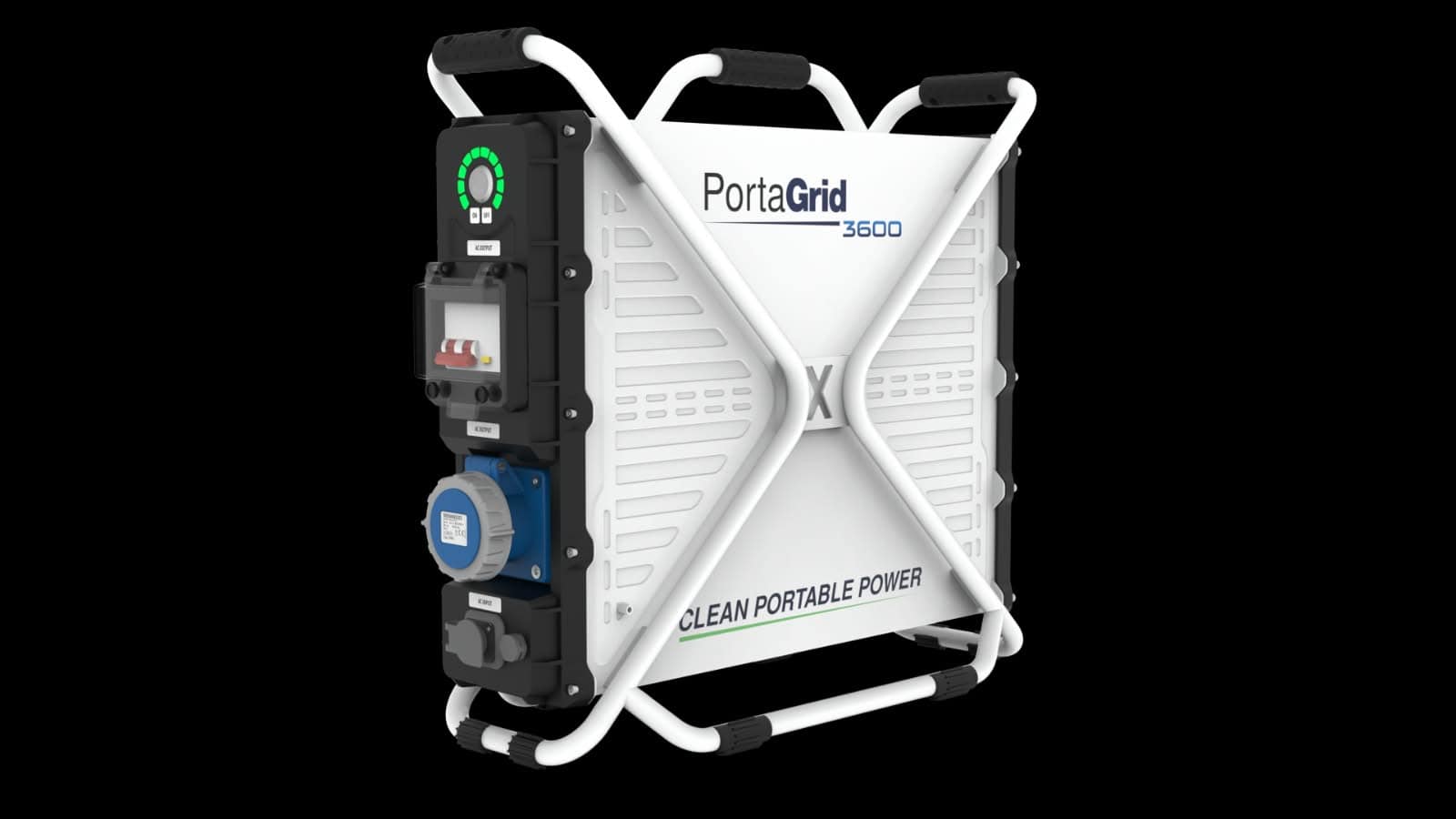

DyMac PortaGrid 3600W Portable Battery Power Station
Professional Portable Battery Power Available in Dublin
The DyMac PortaGrid 3600W is a rugged, professional-grade portable battery power station designed to operate demanding 230V tools and equipment without the noise, fumes or fuel requirements of a conventional generator.
Delivering 3,600W of continuous power, an exceptional 20,000W peak output and 2,304Wh of battery storage, the PortaGrid provides serious portable power in a compact 24kg unit.
Available in Dublin from A-Z Hire, the PortaGrid is ideal for construction contractors, tradespeople, facilities teams, film and television productions, events, emergency services and anyone requiring reliable 230V power away from the mains.
Why Choose the PortaGrid 3600W?
Many portable power stations are designed primarily for camping, charging phones or running small household appliances. The PortaGrid is engineered for more demanding professional applications.
Its exceptionally high peak output allows it to handle the initial power surge required by equipment such as compressors, pumps, welding machines and certain high-powered construction tools.
Key advantages include:
- 3,600W continuous output
- Up to 20,000W peak output
- 2,304Wh battery capacity
- Professional 230V pure sine-wave power
- Two 13A power outlets
- Only 24kg in weight
- Full recharge in under 2.5 hours
- IP54 protection against dust and water spray
- Quiet operation below 30dB
- No petrol or diesel required
- No exhaust emissions at the point of use
- Bluetooth connectivity and app-based monitoring
- Remote firmware update capability
- Natural cooling without noisy cooling fans
A Practical Alternative to a Petrol or Diesel Generator
The PortaGrid can provide portable 230V electricity in locations where a conventional fuel generator would be noisy, inconvenient or unsuitable.
There is no engine to start, no fuel to transport and no exhaust fumes produced while operating. This makes it particularly valuable for indoor work, occupied buildings, residential areas, hospitals, schools, film sets and noise-sensitive locations.
Simply charge the unit from a suitable mains supply and take reliable battery power directly to the job.
Suitable Applications
The DyMac PortaGrid 3600W can be used across a wide range of professional and commercial environments, including:
- Construction and fit-out projects
- Power tools on sites without a mains connection
- Indoor renovation and maintenance work
- Welding equipment
- Compressors and pumps
- Concrete breakers and demolition equipment
- Film, television and photography productions
- Outdoor events and mobile catering
- Emergency and rescue operations
- Agricultural and equestrian applications
- Facilities management and maintenance
- Temporary office and communications equipment
- Backup power during electrical outages
- Remote and off-grid work locations
Equipment suitability and operating time will depend on its starting load, continuous power consumption and the total energy required.
Built for Construction Sites and Professional Users
With its rugged enclosure, compact dimensions and IP54 rating, the PortaGrid is designed for use in demanding working environments.
Unlike many domestic portable power stations, it combines a relatively compact battery capacity with extremely high instantaneous output. This means it can start equipment with heavy surge requirements without needing a much larger and heavier battery generator.
Its two integrated carrying handles make the 24kg unit practical to move between vehicles, work areas and floors of a building.
Quiet Portable Power for Indoor Work
The PortaGrid operates at less than 30dB and uses natural internal cooling, removing the need for a constantly running cooling fan.
This makes it an excellent portable power solution for:
- Night work
- Occupied offices
- Retail premises
- Hotels and apartment buildings
- Schools and healthcare settings
- Indoor construction projects
- Residential neighbourhoods
- Sound-sensitive film locations
Because it produces no exhaust emissions at the point of use, it offers a major advantage over petrol and diesel generators. Appropriate site ventilation and electrical safety procedures must still be followed for any connected equipment.
Fast and Efficient Recharging
The PortaGrid can be fully recharged in less than 2.5 hours using a suitable 230V mains supply. Its maximum charging input is 1,200W, with charging efficiency of up to 97%.
The ten-level LED battery display allows the operator to quickly check the remaining charge before and during use. Bluetooth and app-based monitoring provide additional visibility over the unit’s condition and performance.
How Long Will a PortaGrid 3600 Run?
The PortaGrid has a rated battery capacity of 2,304Wh. Actual operating time depends on the power consumed by the connected equipment, its duty cycle and normal conversion losses.
Approximate theoretical examples before allowing for system losses include:
| Connected load | Approximate maximum runtime |
|---|---|
| 100W | 23 hours |
| 250W | 9 hours |
| 500W | 4.6 hours |
| 1,000W | 2.3 hours |
| 2,000W | 1.15 hours |
| 3,600W | 38 minutes |
Tools such as breakers, saws, pumps and compressors frequently operate intermittently rather than continuously. Their real working time may therefore be longer than a calculation based solely on their maximum rated wattage.
Contact A-Z Hire with the equipment you intend to operate and we can help determine whether the PortaGrid is suitable.
PortaGrid 3600W Technical Specifications
| Specification | PortaGrid PG-3600W |
|---|---|
| Rated output power | 3,600W |
| Peak output power | 20,000W |
| Peak output current | 140A instantaneous |
| Battery capacity | 2,304Wh |
| Output voltage | 230V AC |
| Output waveform | Pure sine wave |
| Frequency | 50Hz |
| AC outlets | 2 × 13A sockets |
| Maximum charging input | 1,200W |
| Full charging time | Under 2.5 hours |
| Maximum efficiency | 97% |
| Noise level | Below 30dB |
| Protection rating | IP54 |
| Cooling | Natural cooling |
| Weight | 24kg |
| Dimensions | 526 × 485 × 211mm |
| Battery indicator | Ten-level LED display |
| Connectivity | Bluetooth and app monitoring |
| Discharge temperature | -15°C to 55°C |
| Charging temperature | 5°C to 40°C |
| Maximum operating altitude | 2,000m |
Can the PortaGrid Run My Power Tool?
It can operate equipment requiring up to 3,600W of continuous power, subject to the tool’s starting current, operating characteristics and connection requirements.
The 20,000W peak capability is particularly useful for equipment that draws a short surge of current when starting. However, peak power is not the same as continuous output, so every application should be checked against the equipment manufacturer’s rating.
For unusual or particularly demanding equipment, speak to the A-Z Hire team before purchasing.
Buy the DyMac PortaGrid 3600W in Dublin

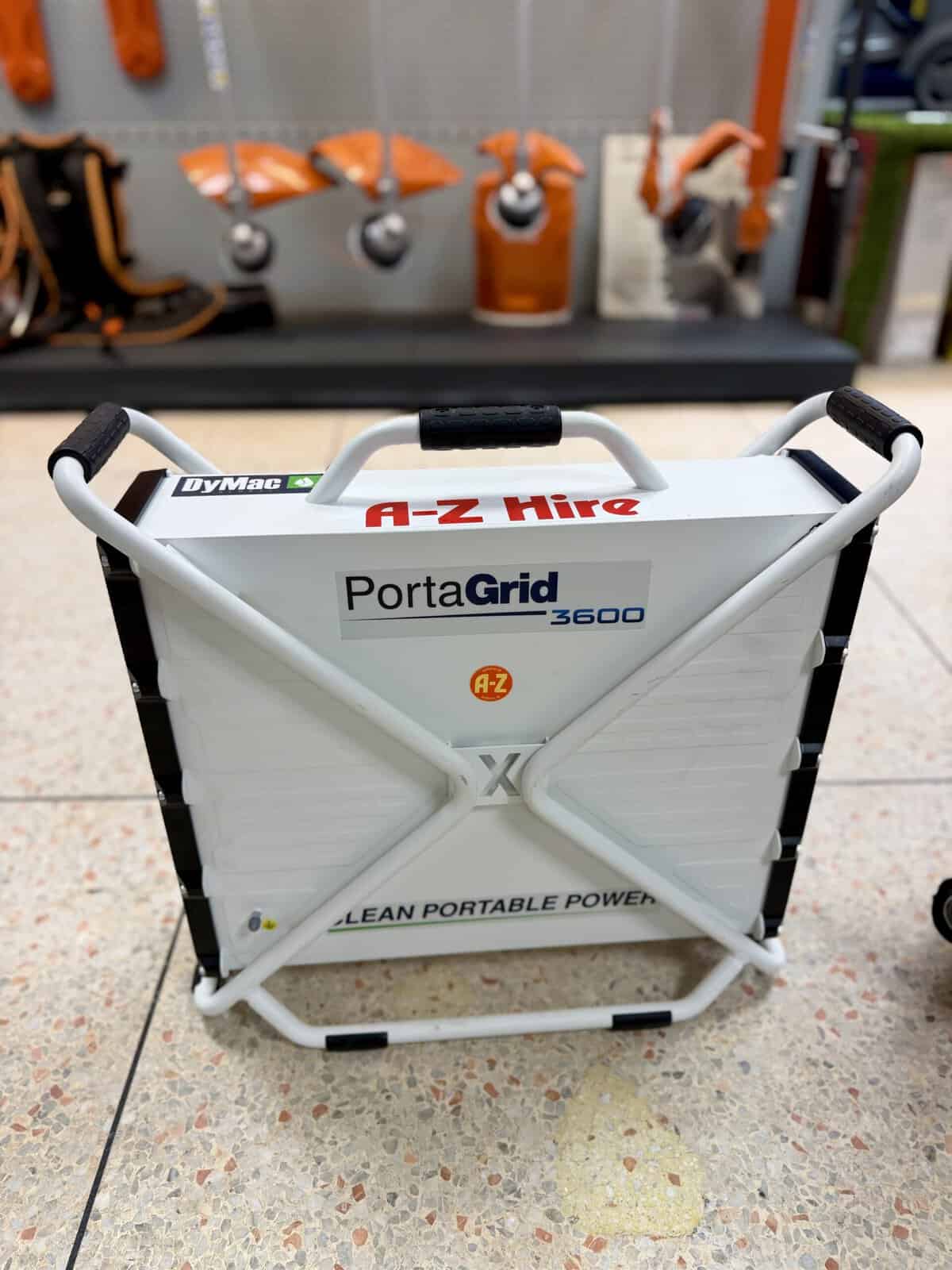

The DyMac PortaGrid PG-3600W 230V is available from A-Z Hire in Walkinstown, Dublin 12.
Buying locally gives contractors and businesses access to practical product advice from a Dublin equipment specialist. We can help assess your intended tools, expected load and likely operating time before you choose your portable battery power solution.
Contact A-Z Hire today for:
- Current PortaGrid pricing
- Stock availability
- Product demonstrations
- Advice on equipment compatibility
- Portable and larger-scale battery power solutions
- Battery power options for construction sites, events and commercial applications
Frequently Asked Questions
Is the PortaGrid a battery generator?
Yes. “Battery generator” is a commonly searched term for this type of equipment, although the PortaGrid does not generate electricity itself. It is a rechargeable portable battery power station that stores electricity and supplies 230V AC power without running a combustion engine.
Does the PortaGrid need petrol or diesel?
No. It is rechargeable from a suitable electrical supply and does not require petrol or diesel to operate.
Can the PortaGrid be used indoors?
Its quiet operation and absence of exhaust emissions at the point of use make it particularly suitable for many indoor applications. The connected tool or appliance must also be suitable for the location and used in accordance with relevant safety instructions.
Is it waterproof?
The PortaGrid carries an IP54 rating, meaning it is protected against limited dust ingress and water spray. It should not be submerged or treated as completely waterproof.
Is it suitable for sensitive electronic equipment?
It provides a stable 230V pure sine-wave output, making it suitable for a wide variety of tools, appliances and electronic equipment within its stated limits.
Where can I buy a PortaGrid in Ireland?
The DyMac PortaGrid 3600W is available in Dublin from A-Z Hire, Walkinstown, Dublin 12. Contact us to confirm current pricing and availability.
A-Z Hire – Equipment and Portable Power Specialists in Dublin
A-Z Hire supplies equipment, battery power solutions and tool hire in Dublin for contractors, tradespeople, businesses and domestic customers. We are also a STIHL Authorised Dealer and Service Centre, providing equipment sales, servicing and expert local support from our premises in Walkinstown.
Full specifications and DyMac brochure
REGISTER INTEREST TODAY. DELIVERY LATE SEPTEMBER 2026 €3800 gavin@azhire.ie
